D-SUB DB15 Male/Female Header Breakout Board, DSUB Terminal Block, Connector.
Product details
| Management number | 247549369 | Release Date | 2026/08/16 | List Price | US$5.60 | Model Number | 247549369 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
D-SUB DB15 Male / Female Header Breakout Board. DB15 male and female header connectors. Pitch 3.81mm/0.15" screw terminal block. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72 x 47.35 x 20mm(W x L x H). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC Terminal block specifications: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
- D-SUB DB15 Male / Female Header Breakout Board.
- DB15 male and female header connectors.
- Pitch 3.81mm/0.15" screw terminal block.
- FR-4 fiber glass PCB, dual copper layers.

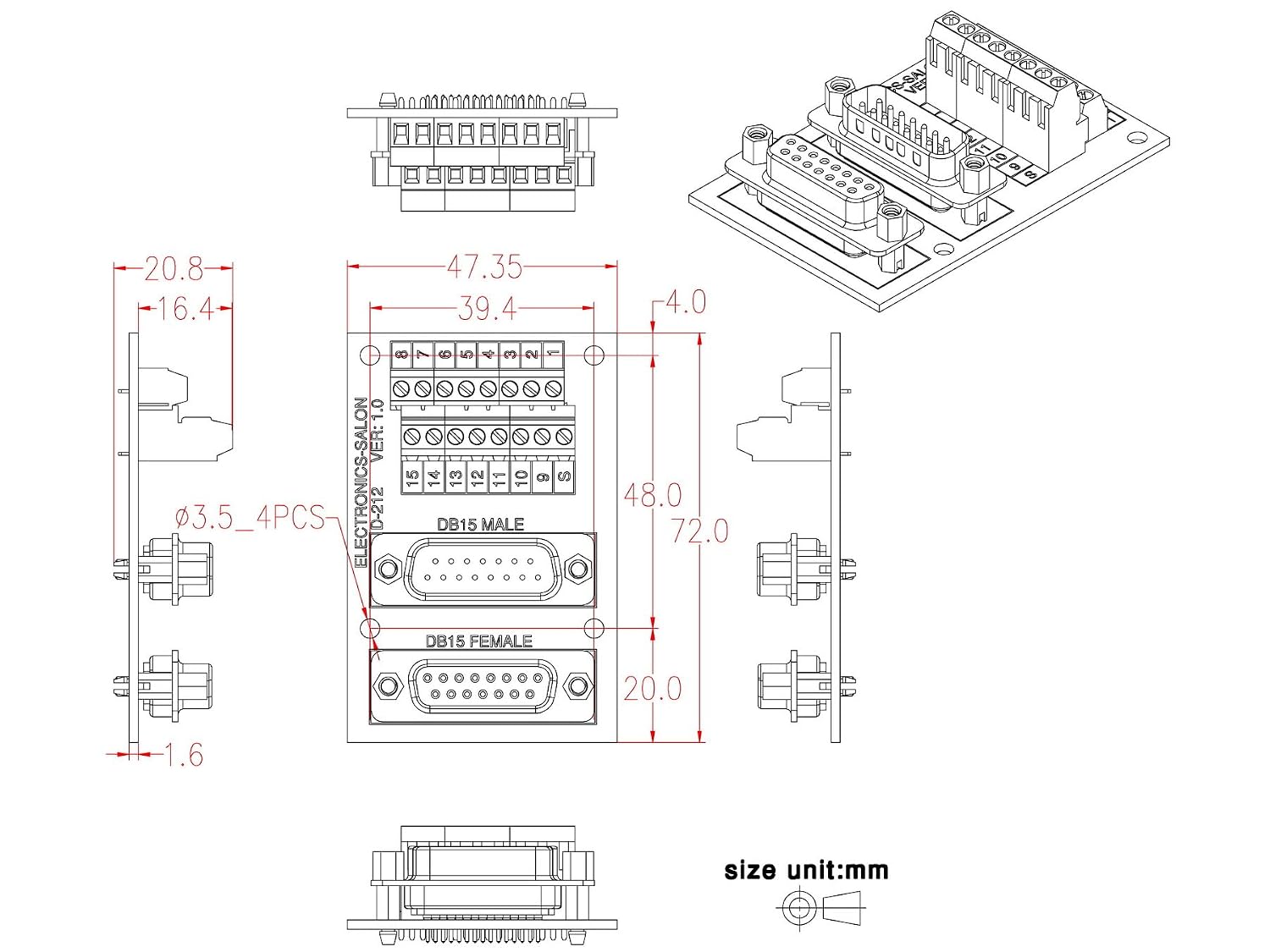

- Dimensions: 72 x 47.35 x 20mm(W x L x H).
| ASIN | B00SUJZ8DW |
|---|---|
| Color | Green |
| Gauge | 16 |
| Model | 5cb34e31-5672-4fe3-94bd-0d58a6a807d9 |
| Pitch | 3.81 millimeters |
| Voltage | 60 volts |
| Brand Name | Electronics-Salon |
| Unit Count | 1 Count |
| Part Number | MD-D212-1 |
| Manufacturer | Electronics-Salon |
| Material Type | Plastic |
| Mounting Type | PCB Mount |
| Connector Type | Screw |
| Current Rating | 1 A |
| Number Of Poles | 15 |
| Number of Items | 1 |
| Centerline Length | 7.2 centimeters |
| Number Of Contacts | 15 |
| Number of Positions | 15 |
| Item Dimensions W x H | 2.83"W x 0.79"H |
| Upper Temperature Rating | 50 °C |
